Yacht - Swimladder

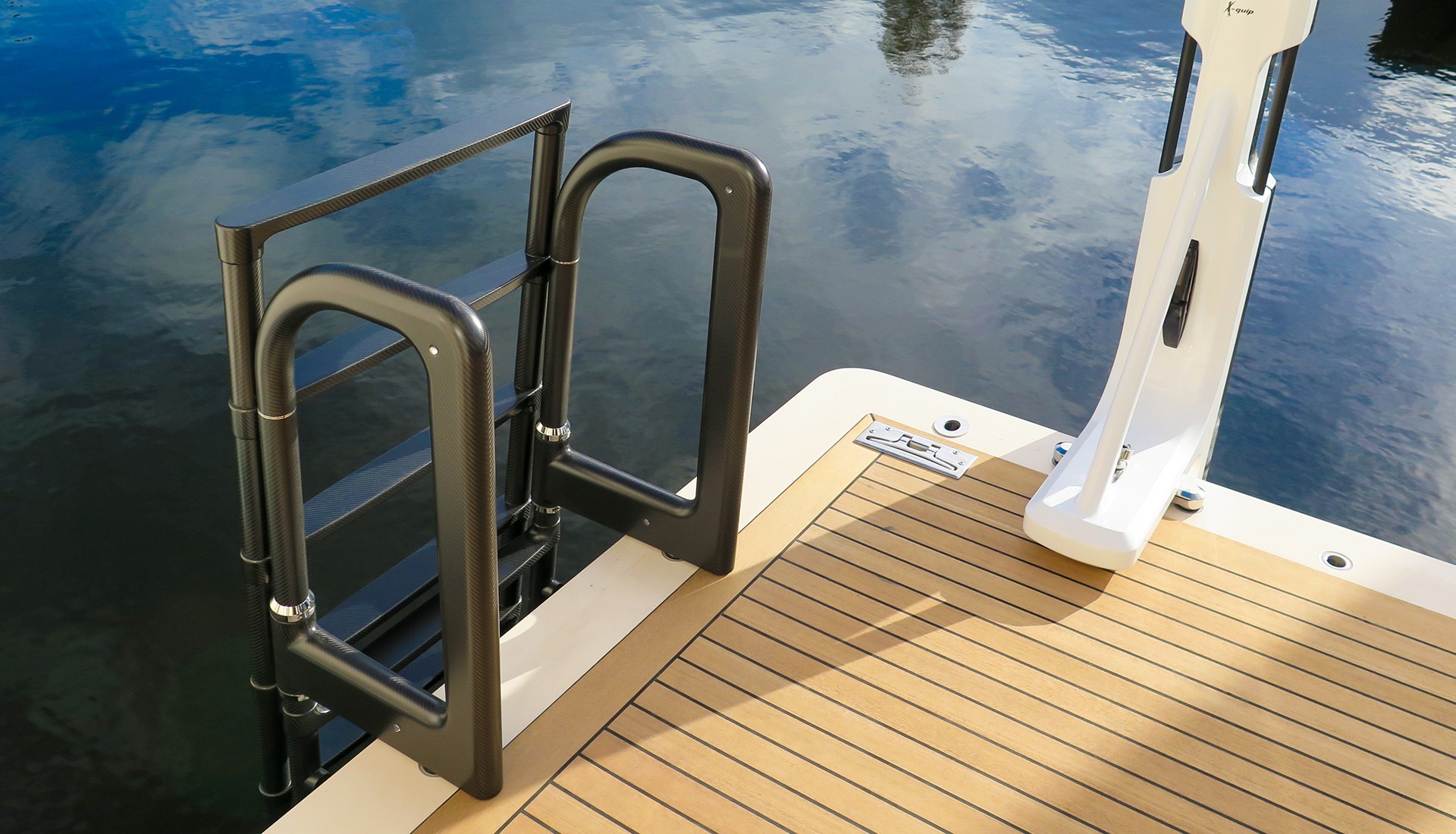

Xquip's Swim Ladder is built for larger vessels where comfort and ease of re-entry matter. Wide steps and a generous profile make getting in and out of the water effortless yet despite its size, the ladder folds down to a surprisingly compact footprint for clean, unobtrusive storage when not in use. Crafted from carbon fibre and mirror-polished stainless steel, it's as refined as the yacht it's fitted to.
specifications
Weight
18 kg
Material
Carbon fiber and stainless-steel 316
Extra Options
Bag, Teak, Eshtec or Non skid

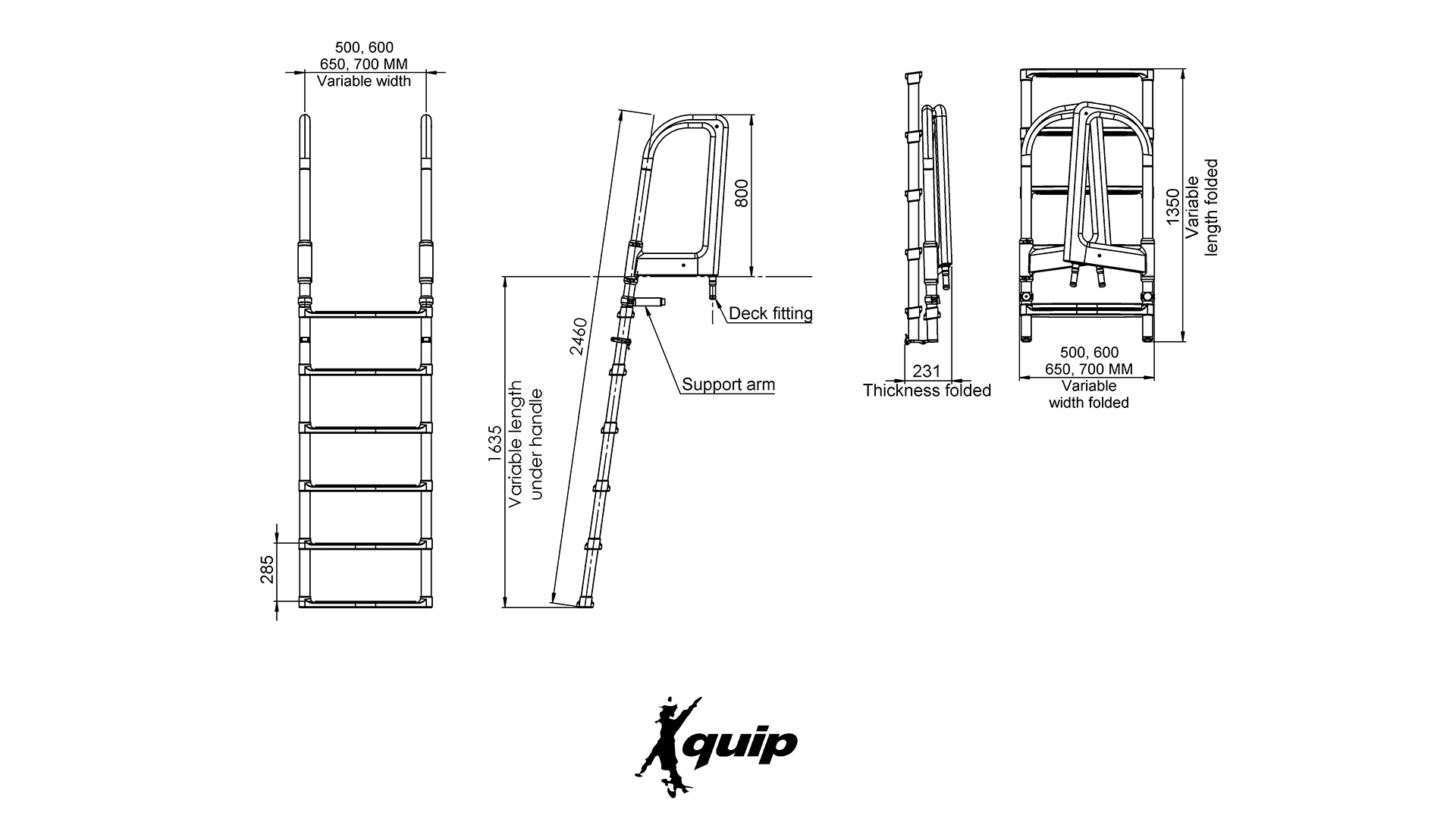

Configurations
Part number
Material
Length below deck (mm)
Width (mm)
Weight (kg)
Working load (KG)
Folded size
Yacht ladder - 500 6 step
Carbon fiber
1600
500
20
150Kg
135 x 57 x 23cm
Yachtladder 500 7 step
Carbon fiber with stainless steel parts
1890
500
21
150KG
147 x 57 x 23cm
Yachtladder 500 8 step
Carbon fiber with stainless steel parts
2180
500
22
150KG
164 x 57 x 23cm
Yachtladder 600 5 step
Carbon fiber with stainless steel parts
1310
600
21
150KG
Yachtladder 600 6 step
Carbon fiber with stainless steel parts
1600
600
22
150KG
135 x 67 x 23cm
Yachtladder 600 7 step
Carbon fiber with stainless steel parts
1890
600
23
150KG
147 x 67 x 23cm
Yachtladder 600 8 step
Carbon fiber with stainless steel parts
2180
600
24
150KG
164 x 67 x 23cm
Yachtladder 650 5 step
Carbon fiber with stainless steel parts
1310
650
22
150KG
Yachtladder 650 6 step
Carbon fiber with stainless steel parts
1600
650
23
150KG
135 x 72 x 23cm
Yachtladder 650 7 step
Carbon fiber with stainless steel parts
1890
650
24
150KG
147 x 72 x 23cm
Yachtladder 650 8 step
Carbon fiber with stainless steel parts
2180
650
25
150KG
164 x 72 x 23cm
Yachtladder 700 5 step
Carbon fiber with stainless steel parts
1310
700
23
150KG
Yachtladder 700 6 step
Carbon fiber with stainless steel parts
1600
700
24
150KG
135 x 77 x 23cm
Yachtladder 700 7 step
Carbon fiber with stainless steel parts
1890
700
25
150KG
147 x 77 x 23cm
Yachtladder 700 8 step
Carbon fiber with stainless steel parts
2180
700
26
150KG
164 x 77 x 23cm
Yachtladder 800 5 step
Carbon fiber with stainless steel parts
1310
800
24
150KG
Yachtladder 800 6 step
Carbon fiber with stainless steel parts
1600
800
25
150KG
135 x 87 x 23cm
Yachtladder 800 7 step
Carbon fiber with stainless steel parts
1890
800
26
150KG
147 x 87 x 23cm
We are Xquip
Additional options
Each Xquip product is available with a range of additional options, allowing you to upgrade and tailor every detail to your preferences.
